Biosecure
Overpressure and underpressure protection
To make biogas plant operation as safe as possible, we have designed and built our Biosecure overpressure/underpressure protection system in accordance with the most stringent safety requirements and after careful selection of the relevant harmonised standards and other technical specifications. Thus, it meets the current state of the art and guarantees a maximum level of safety.

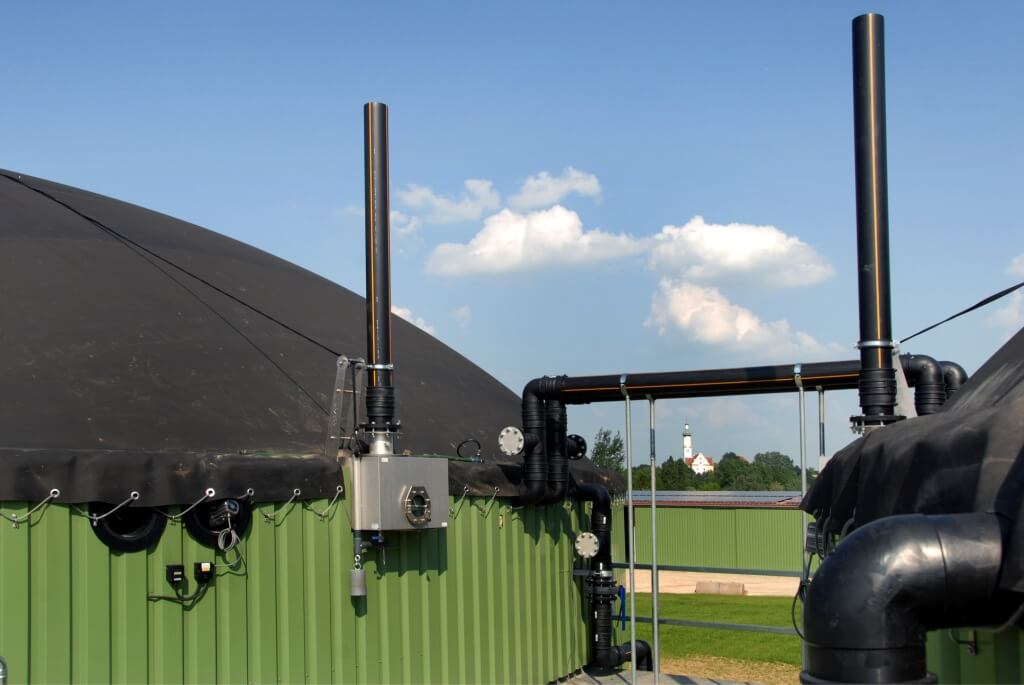

The Biosecure can either be controlled mechanically through a biogas storage membrane or using weight-operated immersion cups. The Biosecure housing is made of stainless steel; the immersion cups and the steering linkage are plastic. We use water as sealing liquid to which antifreeze is added at low outside temperatures. As an option, an insulating jacket or an electric heating rod can be installed to prevent the water from freezing when no antifreeze is added. The functioning inside the housing can be checked through the built-in sight glass.
Über- und Unterdrucksicherung Funktionsweise
The Biosecure overpressure/underpressure protection monitors and regulates the positive and negative pressure in biogas digesters. It protects the biogas storage membranes of fermenters, secondary fermenters and fermentation residue storage facilities from impermissible loads.
The Biosecure has been designed as a safety component in accordance with the Machinery Directive 2006/42/EC.
However, the safety we intent to achieve when operating a biogas plant can only be accomplished in practice if all necessary measures are taken. It falls within the operator’s duty of care to support these measures and to check their execution.
ADVANTAGES OF THE OVERPRESSURE/UNDERPRESSURE PROTECTION
Biosecure
- reliable overpressure protection: functions either pneumatically (under-overpressure) or controlled mechanically (e.g. gas bag)
- in connection with the insulating jacket, no antifreeze necessary as barrier liquid down to -20 °C
- no replenishing of the barrier liquid necessary
- auto-regulation of fill levels
- excess condensate drains into the digester
- maintenance-free
- a heating rod optionally available
- includes a pressure test port
- includes a pressure sensor terminal
Extension option for overpressure and underpressure protection
Accessories (optional)
- Pipe connection set for substrate pipes
- Pipe connection set for heating
FREQUENTLY ASKED QUESTIONS
Frequently asked questions and answers
Biogas flows out over a longer period of time even though the traction cable is not tensioned
Pressure/vacuum bell does not close
– Check sealing liquid level; top up if necessary.
– Check for soiling, flush if necessary (lower flush connection).
– Check overpressure/vacuum bell for free movement.
– Check deflection linkage for free movement.
– Check for icing during winter operation
– Otherwise notify customer service.
Biogas storage membrane is stretched too much
Biosecure does not respond
– Check ropes for correct length.
– Check deflection linkage.
– Check the overpressure bell for free movement.
– Check for icing during winter operation.
– Otherwise contact customer service.
